Our Expertise and Services.
At Bit-PLEX Lab, we understand that every device is a seamless integration of hardware and software, with each component relying on the other. Our focus is on delivering top-tier hardware paired with sophisticated software solutions tailored to our clients' needs. Our expertise encompasses precise circuit design, sensor parameter testing, industrial sensor board design, real-time sensor data integration with cloud services, data management, and user interface development. We offer comprehensive design services including LoRaWAN, Wi-Fi, BLE, RF-supported hardware, analog hardware, power converter circuits, and high-voltage industrial motor driver boards, all with robust software support. Below are some of the products we are currently developing

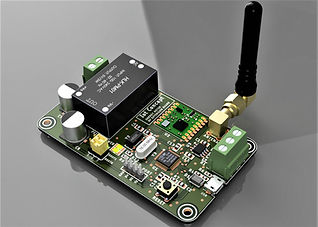

Industrial LORF iot Hardware design service
LORF based EV sensor
SPECIFICATION:
-
Enviormental sensor with RF.
-
Upto 2mbps data transfer speed.
-
2.4 Ghz single channel communication.
-
Integrated Bosh EV sensor.
-
Easily installble in outdoor enviorment.
-
Battery operated with power saving mode.

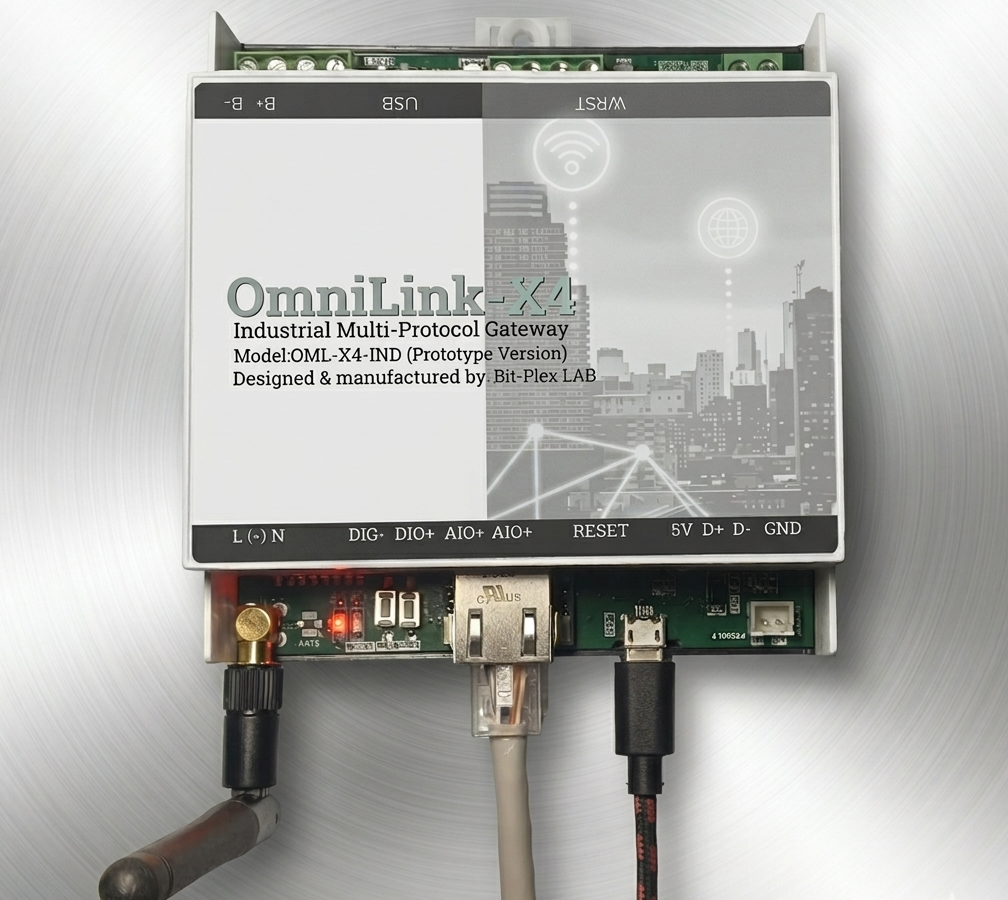

WiFi & LORF GATEWAY
SPECIFICATION:
-
Support both WIFI and LORF
-
Integrated MQTT communication protocol.
-
Over the air updatable HTTP interface.
-
50 channel communication.
-
Fully 3d printed custom design.
-
+5dB antenna gain ( signal range 800 ~1000 m)
Industrial LORAWAN IoT hardware design service
( Modbus / RS485 / RS232 / TCP-IP / WLAN / ETH )
Lorawan Energy meter
LorawanField testing
High voltage power converter
Complete HOME AUTOMATION solution
Magic Switch Board
SPECIFICATION:
-
4 Channel switch board for home automation
-
110 / 220 V mains AC supply.
-
Easily installed and configurabe.
-
Works with or without internet.
-
Work with Android app.
IOT server and UI dashboard design
MQTT server with UI
Single board computer ( raspberry-pi ) based IoT web server. This is just a demo design to integrate with the LORF gateway and fetch data from the EV sensor node.
This server is fully customized and integrated with a very user-friendly UI. It can handle up to 50 nodes' data simultaneously.
MEDICAL IoT hardware and software design
Wireless Stethoscope
SPECIFICATION:
-
AAC codec digital audio.
-
powerd by 1000mAh Li-po battery over.
-
Internal MEMS microphone technology.
-
Works with or without internet.
-
Work with Android app.
